MIT 6.S081 | 0x09 File system

• 链接：https://pdos.csail.mit.edu/6.S081/2021/labs/fs.html
• 难度：

Before writing code, you should read “Chapter 8: File system” from the xv6 book and study the corresponding code.

Large files

Modify bmap() so that it implements a doubly-indirect block, in addition to direct blocks and a singly-indirect block. You’ll have to have only 11 direct blocks, rather than 12, to make room for your new doubly-indirect block; you’re not allowed to change the size of an on-disk inode. The first 11 elements of ip->addrs[] should be direct blocks; the 12th should be a singly-indirect block (just like the current one); the 13th should be your new doubly-indirect block. You are done with this exercise when bigfile writes 65803 blocks and usertests runs successfully

分析

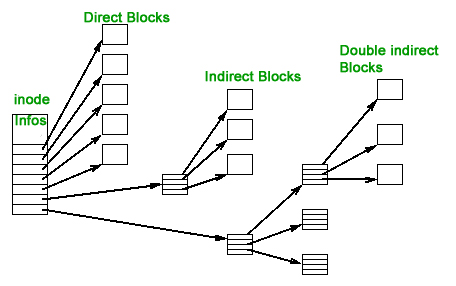

文件 inode 结构

xv6 的文件系统使用 inode 记录文件的元数据，其中 addrs 通过多级索引记录文件的数据块。这部分实验首先就需要读懂 bmap()，读懂代码流程，看懂上面这张图，实验就完成一半了，代码部分比较简单，下面直接看就行。

一定要记得把 MAXFILE 改一下，我就是因为忘了改，bigfile 一直通不过

代码

diff --git a/kernel/file.h b/kernel/file.h
index b076d1d..5c4eb3a 100644
--- a/kernel/file.h
+++ b/kernel/file.h
@@ -26,7 +26,7 @@ struct inode {
   short minor;
   short nlink;
   uint size;
-  uint addrs[NDIRECT+1];
+  uint addrs[NDIRECT+2];
 };

 // map major device number to device functions.
diff --git a/kernel/fs.c b/kernel/fs.c
index c6bab15..c3927bf 100644
--- a/kernel/fs.c
+++ b/kernel/fs.c
@@ -416,6 +416,45 @@ bmap(struct inode *ip, uint bn)
     brelse(bp);
     return addr;
   }
+  bn -= NINDIRECT;
+
+  if (bn < NINDIRECT * NINDIRECT) {
+    // Load doubly-indirect block, allocating if necessary.
+    if ((addr = ip->addrs[NDIRECT + 1]) == 0) {
+      addr = balloc(ip->dev);
+      if (addr == 0) {
+        return 0;
+      }
+      ip->addrs[NDIRECT + 1] = addr;
+    }
+    uint bnb = bn / NINDIRECT;  // b-th bucket in doubly-indirect block.
+    uint bni = bn % NINDIRECT;  // i-th block in indirect block.
+    // Load doubly-indirect block first.
+    bp = bread(ip->dev, addr);
+    a = (uint*)bp->data;
+    if ((addr = a[bnb]) == 0) {
+      addr = balloc(ip->dev);
+      if (addr == 0) {
+        brelse(bp);
+        return 0;
+      }
+      a[bnb] = addr;
+      log_write(bp);
+    }
+    brelse(bp);
+    // Then indirect block.
+    bp = bread(ip->dev, addr);
+    a = (uint*)bp->data;
+    if ((addr = a[bni]) == 0) {
+      addr = balloc(ip->dev);
+      if (addr) {
+        a[bni] = addr;
+        log_write(bp);
+      }
+    }
+    brelse(bp);
+    return addr;
+  }

   panic("bmap: out of range");
 }
@@ -425,9 +464,9 @@ bmap(struct inode *ip, uint bn)
 void
 itrunc(struct inode *ip)
 {
-  int i, j;
-  struct buf *bp;
-  uint *a;
+  int i, j, k;
+  struct buf *bp, *bpi;
+  uint *a, *ai;

   for(i = 0; i < NDIRECT; i++){
     if(ip->addrs[i]){
@@ -448,6 +487,26 @@ itrunc(struct inode *ip)
     ip->addrs[NDIRECT] = 0;
   }

+  if (ip->addrs[NDIRECT + 1]) {
+    bp = bread(ip->dev, ip->addrs[NDIRECT + 1]);
+    a = (uint*)bp->data;
+    for (j = 0; j < NINDIRECT; j++) {
+      if (a[j]) {
+        bpi = bread(ip->dev, a[j]);
+        ai = (uint*)bpi->data;
+        for (k = 0; k < NINDIRECT; k++) {
+          if (ai[k])
+            bfree(ip->dev, ai[k]);
+        }
+        brelse(bpi);
+        bfree(ip->dev, a[j]);
+      }
+    }
+    brelse(bp);
+    bfree(ip->dev, ip->addrs[NDIRECT + 1]);
+    ip->addrs[NDIRECT + 1] = 0;
+  }
+
   ip->size = 0;
   iupdate(ip);
 }
diff --git a/kernel/fs.h b/kernel/fs.h
index 139dcc9..78c109d 100644
--- a/kernel/fs.h
+++ b/kernel/fs.h
@@ -24,9 +24,9 @@ struct superblock {

 #define FSMAGIC 0x10203040

-#define NDIRECT 12
+#define NDIRECT 11
 #define NINDIRECT (BSIZE / sizeof(uint))
-#define MAXFILE (NDIRECT + NINDIRECT)
+#define MAXFILE (NDIRECT + NINDIRECT + NINDIRECT * NINDIRECT)

 // On-disk inode structure
 struct dinode {
@@ -35,7 +35,7 @@ struct dinode {
   short minor;          // Minor device number (T_DEVICE only)
   short nlink;          // Number of links to inode in file system
   uint size;            // Size of file (bytes)
-  uint addrs[NDIRECT+1];   // Data block addresses
+  uint addrs[NDIRECT+2];   // Data block addresses
 };

 // Inodes per block.

Symbolic links

You will implement the symlink(char *target, char *path) system call, which creates a new symbolic link at path that refers to file named by target. For further information, see the man page symlink. To test, add symlinktest to the Makefile and run it. Your solution is complete when the tests produce the following output (including usertests succeeding).

分析

首先复习一下 0x02 System calls 中是如何添加系统调用的。然后就是实现 symlink(char *target, char *path) 系统调用，这个系统调用的功能是创建一个新的符号链接，指向 target 的文件。将 path 对应的 inode 类型改为 T_SYMLINK，然后在第一个 block 中直接记下 target 的路径就好，简单粗暴。

代码

diff --git a/Makefile b/Makefile
index 9b83591..0506f87 100644
--- a/Makefile
+++ b/Makefile
@@ -188,6 +188,7 @@ UPROGS=\
   $U/_grind\
   $U/_wc\
   $U/_zombie\
+  $U/_symlinktest\

diff --git a/kernel/fcntl.h b/kernel/fcntl.h
index 44861b9..e5e38e3 100644
--- a/kernel/fcntl.h
+++ b/kernel/fcntl.h
@@ -3,3 +3,4 @@
 #define O_RDWR    0x002
 #define O_CREATE  0x200
 #define O_TRUNC   0x400
+#define O_NOFOLLOW 0x800
diff --git a/kernel/stat.h b/kernel/stat.h
index 19543af..41a4dc3 100644
--- a/kernel/stat.h
+++ b/kernel/stat.h
@@ -1,6 +1,7 @@
 #define T_DIR     1   // Directory
 #define T_FILE    2   // File
 #define T_DEVICE  3   // Device
+#define T_SYMLINK 4   // Symlink

 struct stat {
   int dev;     // File system's disk device
diff --git a/kernel/syscall.c b/kernel/syscall.c
index ed65409..52233e8 100644
--- a/kernel/syscall.c
+++ b/kernel/syscall.c
@@ -101,6 +101,7 @@ extern uint64 sys_unlink(void);
 extern uint64 sys_link(void);
 extern uint64 sys_mkdir(void);
 extern uint64 sys_close(void);
+extern uint64 sys_symlink(void);

 // An array mapping syscall numbers from syscall.h
 // to the function that handles the system call.
@@ -126,6 +127,7 @@ static uint64 (*syscalls[])(void) = {
 [SYS_link]    sys_link,
 [SYS_mkdir]   sys_mkdir,
 [SYS_close]   sys_close,
+[SYS_symlink] sys_symlink,
 };

 void
diff --git a/kernel/syscall.h b/kernel/syscall.h
index bc5f356..13818da 100644
--- a/kernel/syscall.h
+++ b/kernel/syscall.h
@@ -20,3 +20,4 @@
 #define SYS_link   19
 #define SYS_mkdir  20
 #define SYS_close  21
+#define SYS_symlink 22
diff --git a/kernel/sysfile.c b/kernel/sysfile.c
index 16b668c..04c53fa 100644
--- a/kernel/sysfile.c
+++ b/kernel/sysfile.c
@@ -323,11 +323,31 @@ sys_open(void)
       return -1;
     }
   } else {
-    if((ip = namei(path)) == 0){
-      end_op();
-      return -1;
+    int sym_depth = 0;
+    while (1) {
+      if((ip = namei(path)) == 0){
+        end_op();
+        return -1;
+      }
+      ilock(ip);
+      if (ip->type == T_SYMLINK && (omode & O_NOFOLLOW) == 0) {
+        if (sym_depth > 10) {
+          iunlockput(ip);
+          end_op();
+          return -1;
+        } else {
+          ++sym_depth;
+        }
+        if (readi(ip, 0, (uint64)path, 0, MAXPATH) < 0) {
+          iunlockput(ip);
+          end_op();
+          return -1;
+        }
+        iunlockput(ip);
+      } else {
+        break;
+      }
     }
-    ilock(ip);
     if(ip->type == T_DIR && omode != O_RDONLY){
       iunlockput(ip);
       end_op();
@@ -503,3 +523,31 @@ sys_pipe(void)
   }
   return 0;
 }
+
+uint64
+sys_symlink(void)
+{
+  char target[MAXPATH], path[MAXPATH];
+  struct inode *ip;
+
+  if (argstr(0, target, MAXPATH) < 0 || argstr(1, path, MAXPATH) < 0)
+    return -1;
+
+
+  begin_op();
+  ip = create(path, T_SYMLINK, 0, 0);
+  if (ip == 0) {
+    end_op();
+    return -1;
+  }
+
+  if (writei(ip, 0, (uint64)target, 0, strlen(target)) < 0) {
+    end_op();
+    return -1;
+  }
+
+  iunlockput(ip);
+  end_op();
+
+  return 0;
+}
diff --git a/user/user.h b/user/user.h
index 4d398d5..23060fd 100644
--- a/user/user.h
+++ b/user/user.h
@@ -22,6 +22,7 @@ int getpid(void);
 char* sbrk(int);
 int sleep(int);
 int uptime(void);
+int symlink(const char*, const char*);

 // ulib.c
 int stat(const char*, struct stat*);
diff --git a/user/usys.pl b/user/usys.pl
index 01e426e..bc5c22e 100755
--- a/user/usys.pl
+++ b/user/usys.pl
@@ -36,3 +36,4 @@ entry("getpid");
 entry("sbrk");
 entry("sleep");
 entry("uptime");
+entry("symlink");
